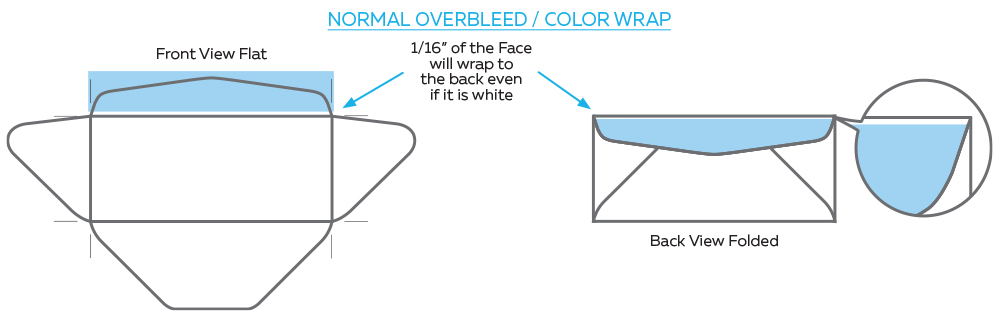

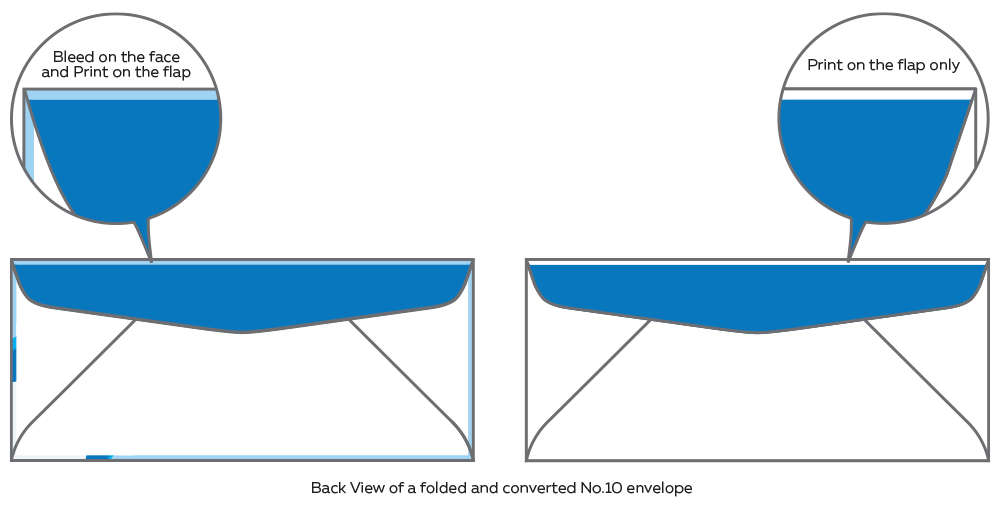

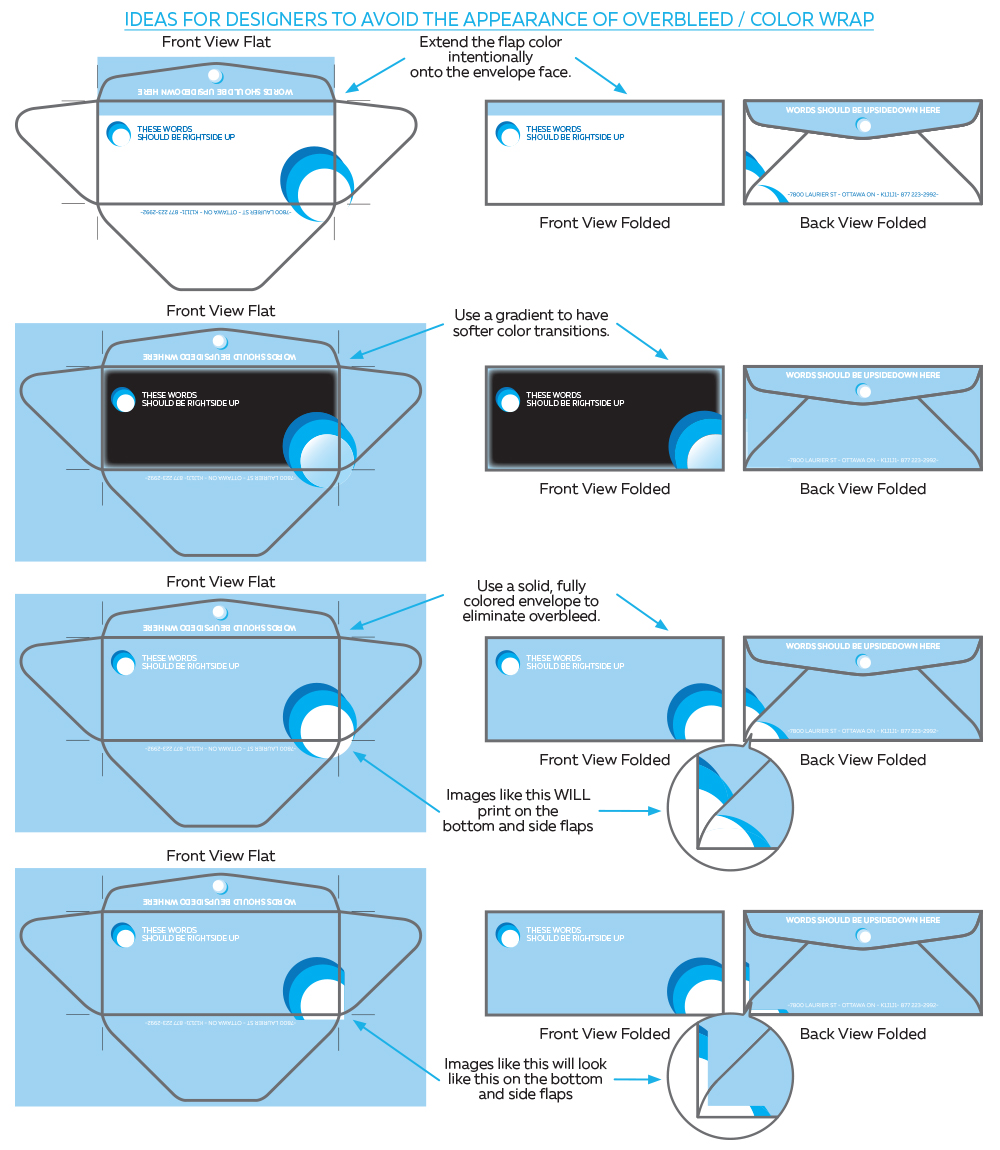

It is required to have 1/16” overbleed and colour wrap onto the back of the envelope to allow for movement throughout the bindery process. It is normal for the artwork on the finished envelopes to vary slightly from one piece to another because of movement during the run and could vary up to 1/8”. As a result of the intensive bindery processes, die-cutting, scoring, folding and gluing (ie. converting), the colour wrap and overbleed may not be even on all sides.

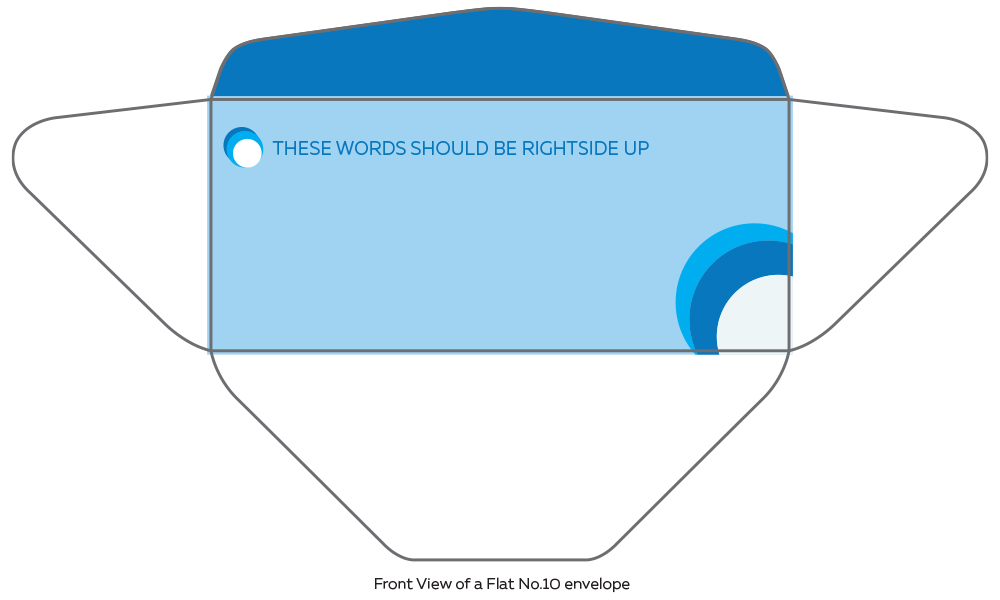

To produce envelopes at the highest quality possible, artwork that has bleed on the face or print on any flap is required to be placed on Newprint’s envelope template. This will ensure that the artwork layout is aligned the way it is intended to print and be converted.</div>
How to generate full-colour envelope templates
1. Go to Newprint’s full-colour envelopes page.</div>

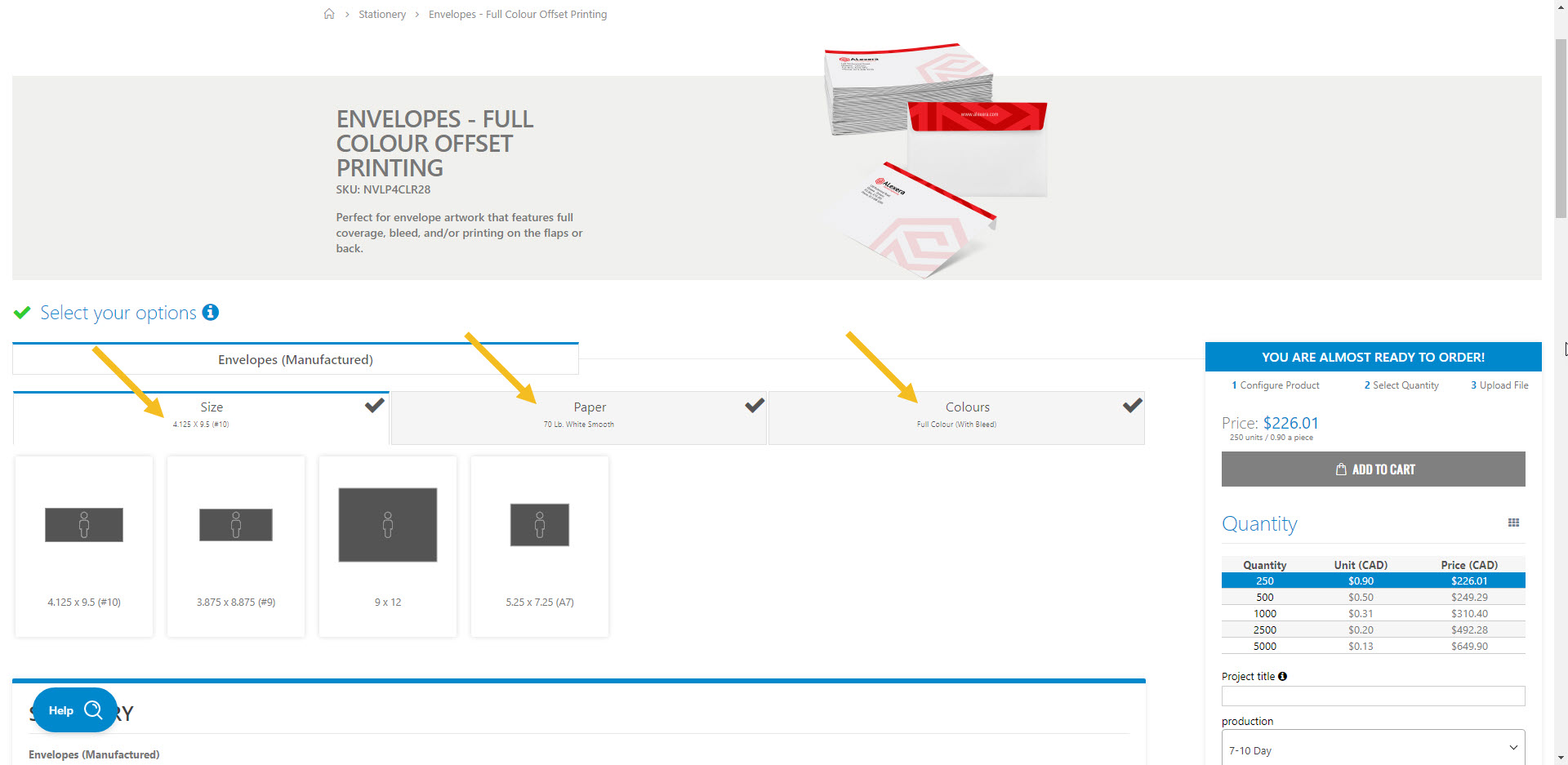

2. Choose your envelope options.</div>

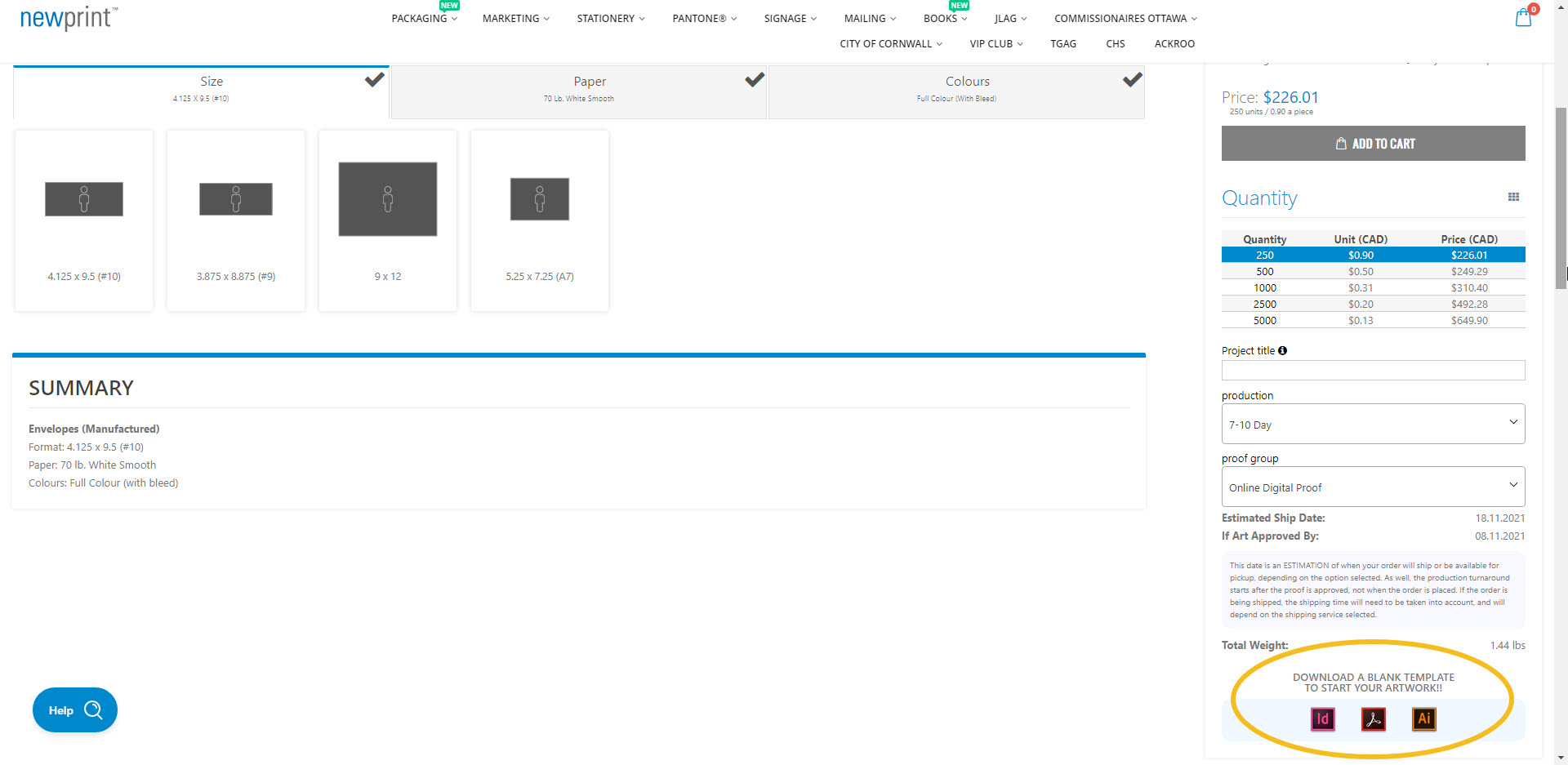

3. Once you have selected all the options, you can download AI, IDML or PDF templates. These templates will match the product options you have previously selected.
